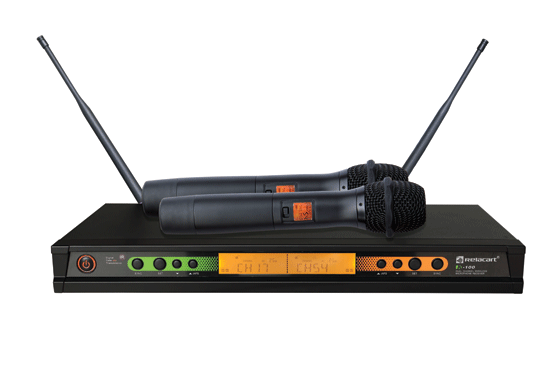

K-100 UHF Dual-channel Wireless Microphone
K-100 is designed for use on karaoke, DJ, universities, houses of worship. stable, easy to install, most affordable unit.
Key Features:
¡ñ Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency
¡ñ Press [IR] button to upload automatically the receiver frequency to the transmitter
¡ñ Each channel 32 selectable frequencies, dual-channel 64 selectable frequencies, total 24 frequency band 768 frequencies for selection
¡ñ 128 MHz transmitter, the four transmitters with different frequencies band (256 transmitters) can be changed freely, convenient for adjustment and management
¡ñ PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "NoiseLock" squelch effectively blocks stray RF
¡ñ Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status
¡ñ Accurate low consume current design with 2 AA alkaline battery, Battery life is twice as common to be 16 hours.
Specifications
EIA STANDARD 1U, Dual Channel, Auto Frequency Selection, Antenna diversity.

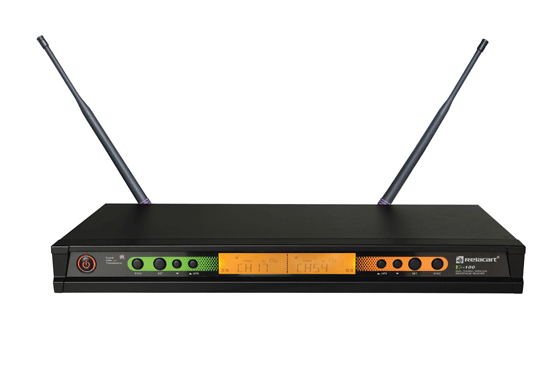

k-100 receiver
|
Main Frame Size |
EIA STANDARD 1U |
|
Carrier Frequency Range |
554MHz~936MHz |
|
Band Width |
32MHz |
|
Frequency Stability |
¡À 0.005% |
|
Max Deviation Range |
¡À45KHz |
|
Oscillation |
PLL synthesized |
|
Modulation Mode |
FM |
|
Sensitivity |
6dB¦ÌV, S/N>60dB at 25 deviation |
|
S/N |
105dB |
|
T.H.D |
£¼0.7% @ 1KHz |
|
Frequency response |
50Hz¡«18KHz ¡À 3dB |
The Handheld microphone offers durable and zinc allloy body, anti-shock design for the net head and tail cover ,soft-touch controls.

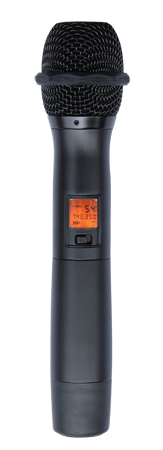

KH-100 Handheld microphone
|
Microphone Element |
Dynamic |
|
Polar pattern |
Cardioid |
|
Carrier Frequency Range: |
UHF 554MHz~936MHz |
|
Bandwidth |
128MHz |
|
Frequency Stability |
¡À0.005£¥ |
|
Max.Deviation Range |
¡À45kHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
RF Power Output: |
15mW/30mW (optinal) |
|
Frequency response |
63Hz-18kHz ¡À3dB |
|
Battery |
AAx2 |
|
Current Consumption |
95mA ( typical) |
|
Battery Current / Life |
Approximately 12 hours |
|
Color |
Black(default)/white |
|
