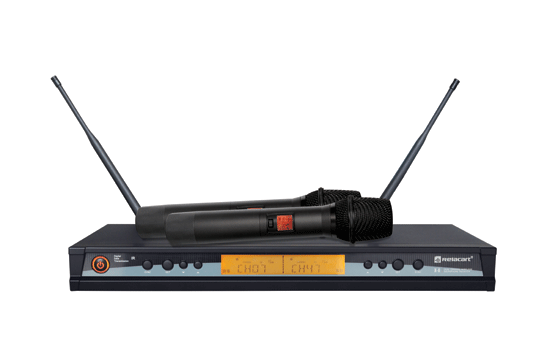

X-8 UHF Dual-channel Wireless Microphone
Designed for use on karaoke, DJ, universities, houses of worship. Stable, easy to install, most affordable unit.
Key Features:
¡ñEIA-standard 1U-rack receiver chassis.
¡ñSuper wide frequency range 554MHz~936 MHz .
¡ñBright and easy-to-read LCD display shows RF/AF, diversity strengths, receiver channels.
¡ñPress the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.
¡ñPress [IR] button to upload automatically the receiver frequency to the transmitter
¡ñPLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
¡ñEach channel 32 selectable frequencies, dual-channel 64 selectable frequencies, total 24 frequency band 768 frequencies for selection.
¡ñ128 MHz transmitter, the four transmitters with different frequencies band (256 transmitters) can be changed freely, convenient for adjustment and management.
¡ñThe handheld microphone offer durable , alloy body, soft-touch controls. Its rubber design for anti-drop and anti-shock use.
¡ñAccurate low consume current design, battery life is twice as common
¡ñThe system is controlled by microcomputer to find noninterference frequency let the total system more stable.
Specifications:

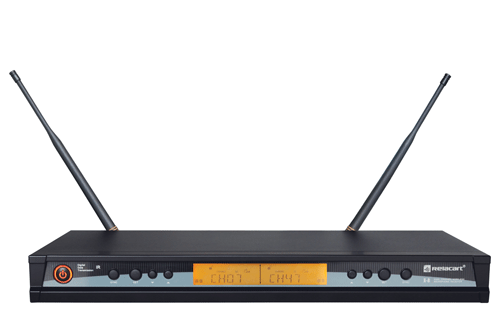

X-8 receiver
|
|
|
Main Frame Size |
EIA STANDARD 1U |
|
Channels |
Dual Channel |
|
Frequency Stability |
¡À0.005£¥ |
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Modulation Mode |
FM |
|
Operating Range£º |
50M typical ( in open space) |
|
Oscillation |
PLL synthesized |
|
Sensitivity |
6dB¦ÌV, S/N>60dB at 25 deviation |
|
Band Width |
32MHz |
|
Max Deviation Range |
¡À45KHz |
|
S/N |
>105dB |
|
T.H.D |
<0.7£¥@1KHz |
|
Frequency response |
50Hz-18KHz ¡À3dB |
|
Power Supply |
DC12v 6w |
|
Weight |
About 1.8 kg |
|
Dimension |
410mm(W)x43mm(H)x206mm(D) |
|
Output Connector |
XLR balanced & 6.3¦Õ phone jack unbalanced |

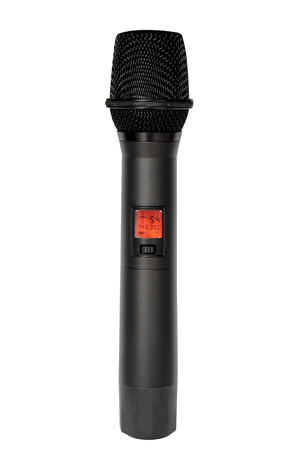

XH-8 Handheld microphone
|
|
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Microphone Element |
Cardioid Dynamic |
|
RF Power Output |
15mW/30mW |
|
Battery |
AA X 2 |
|
Current Consumption |
95mA ( typical) |
|
Battery Current / Life |
Approximately 12 hours |
|
Dimension |
53(¦µ) X 263 (L) |
|
Weight |
412g ( w/o battery) |
|
Color |
Black(default)/white |
|
