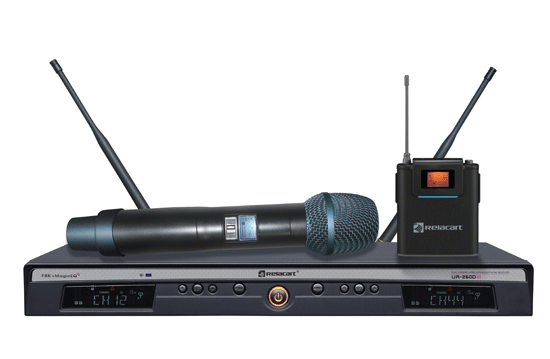

UR-260D UHF Dual-channel Wireless Microphone
Key Features:
¡ñ ¡°Feedback Killer¡± automatic feedback extermination, providing maximum gain and increased clarity on every microphone
¡ñBuilt-in MagicEQ™ preset and user-defined microphone capsule equalization for faithful reproduction to the vocalist or speaker¡¯s favorite ¡°personality¡± sound
¡ñMetal materials EIA-standard 1-rack receiver chassis with LCD display.
¡ñBright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status
¡ñSuper wide frequency range 554MHz~936 MHz, CPU intelligent antenna diversity .
¡ñPress the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.
¡ñPress [IR] button to upload automatically the receiver frequency to the transmitter
¡ñPLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
¡ñEach channel 32 selectable frequencies, dual-channel 64 selectable frequencies, total 24 frequency band 768 frequencies for selection.
¡ñ128 MHz transmitter, the four transmitters with different frequencies band (256 transmitters) can be changed freely, convenient for adjustment and management
¡ñThe transmitters offer durable, magnesium bodies, soft-touch controls
¡ñAccurate low consume current design with 2 AA alkaline battery, Battery life is twice as common.
¡ñContact the computer with TCP/IP protocol ( Contact mobile(Android) with WIFI protocol ), can achieve remote control, diagnose and upgrade.
¡ñUR-260D can match UH-222 handheld microphone, UT-222 body-pack transmitter and UB-200 wireless boundary microphone.
Specifications:

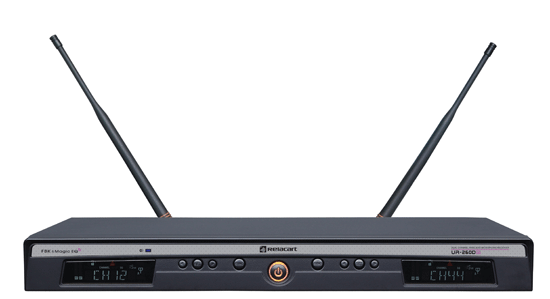

UR-260D receiver
|
|
|
Main Frame Size |
EIA STANDARD 1U |
|
Channels |
Dual Channel |
|
Frequency Stability |
¡À0.005£¥ |
|
Carrier Frequency Range
Sampling Rate |
554MHz~936 MHz
96kHz 24-Bit |
|
Preinstall Audio Equalizers |
Imitate all kind element audio characteristic |
|
Modulation Mode |
FM |
|
Operating Range |
80M typical ( in open space) |
|
Oscillation |
PLL synthesized |
|
Sensitivity |
5dB¦ÌV, S/N>60dB at 25 deviation |
|
Band Width |
32MHz |
|
Max Deviation Range |
¡À45KHz |
|
S/N |
>100dB |
|
T.H.D |
<0.5£¥@1KHz |
|
Frequency response |
45Hz-18KHz ¡À3dB |
|
Power Supply |
DC12V/1A |
|
Weight |
About 2kg |
|
Dimension |
410mm(W)x43mm(H)x206mm(D) |
|
Output Connector |
XLR balanced & 6.3¦Õ phone jack unbalanced |

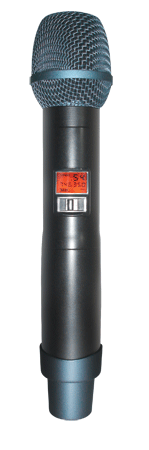

UH-222 Handheld microphone
|
|
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Microphone Element |
Cardioid Dynamic / Cardioid Condenser |
|
RF Power Output |
30mW/50mW |
|
Battery |
AA X 2 |
|
Current Consumption |
120mA ( typical) |
|
Battery Current / Life |
Approximately 8 hours |
|
Dimension |
52(¦µ) X 255 (L) |
|
Weight |
235g ( w/o battery) |

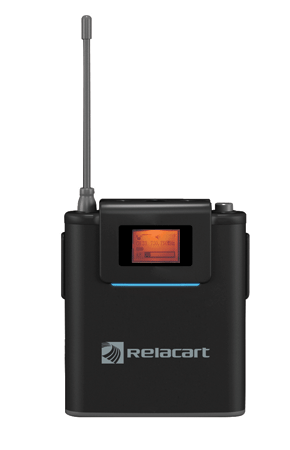

UT-222 Body-pack Transmitter
|
|
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Input connector |
4-pin mini-XLR connector |
|
RF Power Output |
30mW/50mW |
|
Battery |
AA X 2 |
|
Current Consumption |
120mA ( typical) |
|
Battery Current / Life |
Approximately 8 hours |
|
Dimension |
84mm(H)x66mm(W)x23mm(D) |
|
Weight |
155g ( w/o battery) |
|
