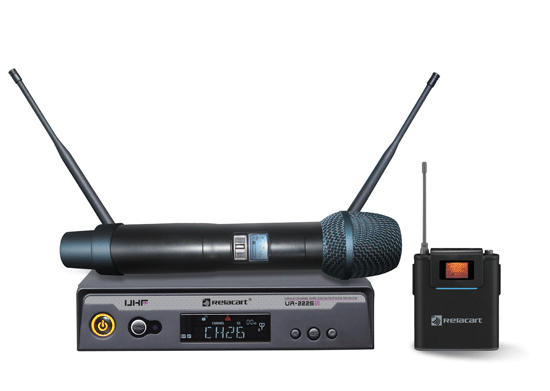

UR-222S Single channel Wireless Microphone
Key Features:
”¤Metal materials EIA-standard 1/2 - rack receiver chassis, antenna diversity.
”¤The transmitters offer durable, magnesium bodies, soft-touch controls.
”¤Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other
working status.
”¤Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency
”¤Press [IR] button to upload automatically the receiver frequency to the transmitter.
”¤PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray R F
”¤Each channel 32 selectable frequencies, dual- channel 64 selectable frequencies.
”¤Battery life is twice as common, up to 15 hours.
”¤Designed for use on professional tours, muti-functional halls, meeting room, concert halls and houses of worship. Stable functions, reliable and flexible performance,
easy to install.

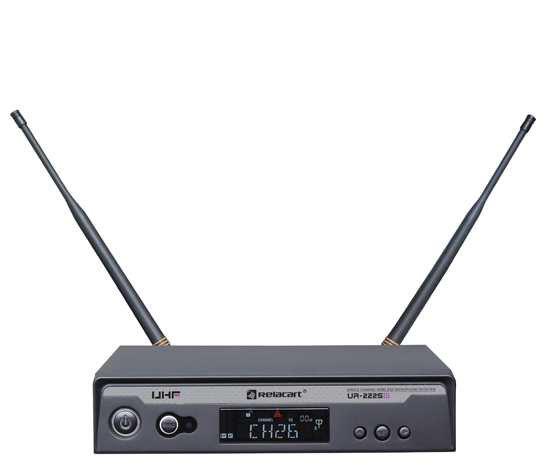

UR-222S receiver
|
|
|
Main Frame Size |
EIA STANDARD 1/2 U |
|
Channels |
Single Channel |
|
Frequency Stability |
”Ą0.005£„ |
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Modulation Mode |
FM |
|
Operating Range |
60M typical ( in open space) |
|
Oscillation |
PLL synthesized |
|
Sensitivity |
5dB¦ĢV, S/N>60dB at 25 deviation |
|
Band Width |
16MHz |
|
Max Deviation Range |
”Ą45KHz |
|
S/N |
>105dB |
|
T.H.D |
<0.7£„@1KHz |
|
Frequency response |
45Hz-18KHz ”Ą3dB |
|
Power Suppl |
DC12V/1A |
|
Weight |
About 1 kg |
|
Dimension |
205mm(W)x43mm(H)x206mm(D) |
|
Output Connector |
XLR balanced & 6.3¦Õ phone jack unbalanced |

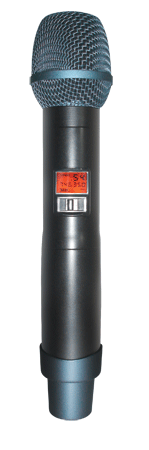

UH-222 Handheld microphone
|
Specifications |
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
”Ą45KHz |
|
Microphone Element |
Cardioid Dynamic / Cardioid Condenser |
|
RF Power Output |
30mW/50mW |
|
Battery |
AA X 2 |
|
Current Consumption |
120mA ( typical) |
|
Battery Current / Life |
Approximately 8 hours |
|
Dimension |
52(¦µ) X 255 (L) |
|
Weight |
235g ( w/o battery) |

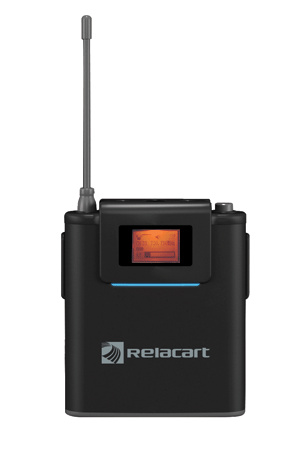

UT-222 Body-pack Transmitter
|
Specifications |
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
”Ą45KHz |
|
Input connector |
4-pin mini-XLR connector |
|
RF Power Output |
30mW/50mW |
|
Battery |
AA X 2 |
|
Current Consumption |
120mA ( typical) |
|
Battery Current / Life |
Approximately 8 hours |
|
Dimension |
84mm(H)x66mm(W)x23mm(D) |
|
Weight |
155g ( w/o battery) |

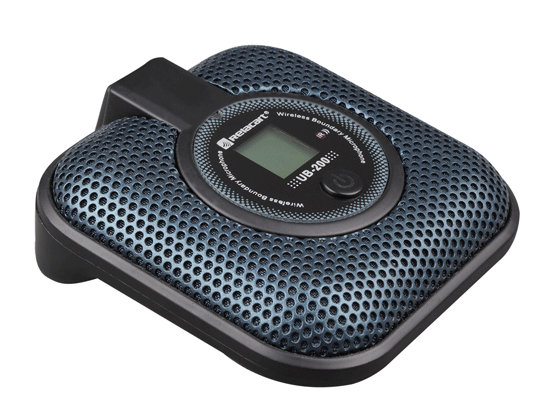

UB-200 Wireless boundary microphone
|
Element |
Fixed-charge back plate, permanently polarized condenser |
|
Polar Pattern |
Half-cardioid (cardioid in hemisphere above mounting surface) |
|
Carrier Frequency Range |
490MHz~860 MHz |
|
Modulation Mode |
FM |
|
Frequency Response |
50-17,000 Hz |
|
Max.Deviation Range |
”Ą45 KHz |
|
Operating Range |
60M typical ( in open space) |
|
Current Consumption |
90mA, typical |
|
RF Power Output |
30mW |
|
Dynamic Range (Typical) |
> 90 dB£¬1 kHz at Max SPL |
|
Battery |
AA X 2 |
|
Battery Current / Life |
Approximately 10 hours |
|
