HR-32S is a powerful and stable wide range true diversity wireless microphone which is designed for big stage performance, can get most satisfactory effect in all kind complex environments.
Key Features:
¡ñ EIA-standard metal 1U receiver chassis, offering programmable features, with high-visibility OLED display.
¡ñ The OLED display show the channel or frequency, RF and AF stringency, battery volume, performer name .
¡ñ 64MHz frequency range, more than 2500 selectable UHF frequencies and True Diversity reception for interference-resistant operation
¡ñ Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency
¡ñ Press [IR] button to upload automatically the receiver frequency to the transmitter
¡ñ PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
¡ñ The transmitters offer durable, magnesium bodies, soft-touch controls.
¡ñ T-32 body-pack transmitter, is one of the most mini transmitter in the world, alloy body, light and durable.
¡ñ Accurate low consume current design with 1 AA alkaline battery, Battery life is twice as common.
¡ñ Contact the computer with TCP/IP protocol, can achieve remote control, diagnose and upgrade.
¡ñ On-board Ethernet interface for monitoring and controlling system parameters with ¡°RWW 1.0¡± Control Interface software
¡ñ HR-32S match H-32 handheld microphone and T-32 body-pack transmitter
Specifications

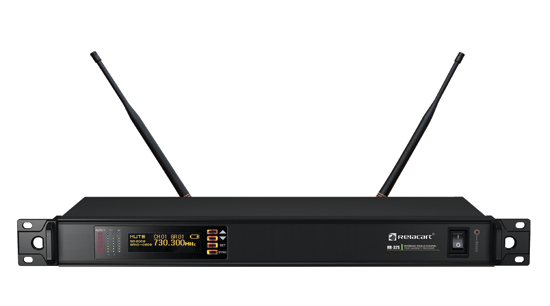

HR-32S receiver
|
|
|
Main Frame Size |
EIA STANDARD 1 U |
|
Diversity |
True diversity |
|
Frequency Stability |
¡À0.005£¥ (-10~50¡ãC) |
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Modulation Mode |
FM |
|
Operating Range |
150M typical ( in open space) |
|
Oscillation |
PLL synthesized |
|
Sensitivity |
5dB¦ÌV, S/N>60dB at 25 KHz deviation |
|
Band Width |
64MHz |
|
Max.Deviation Range |
¡À45KHz |
|
S/N |
>112dB |
|
T.H.D |
<0.4£¥@1KHz |
|
Frequency response |
50Hz-18KHz ¡À1dB |
|
Power Supply |
DC 12V/1A |
|
Output Connector |
XLR balanced & 6.3¦Õ phone jack unbalanced |
|
Weight(kg) |
About 1.1 |
|
Dimension(mm) |
410mm(W)x43mm(H)x206mm(D) |

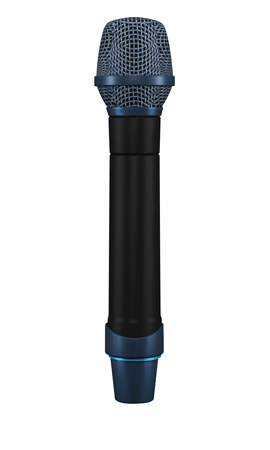

H-32 Handheld microphone
|
|
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Oscillation |
PLL |
|
Harmonic radiation |
Below -63dBm |
|
Frequency range |
Band HF -139MHz
Band AD -134MHz
Band EJ -97MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Microphone Element |
Cardioid Dynamic/Cardioid Condenser (Removable) |
|
RF output power |
10mW/50mW(optional) |
|
Battery |
AAx2 |
|
Current Consumption |
120mA(typical) |
|
Battery life |
About 10 hours |
|
Size (mm) |
53(¦Õ)x265(length) |
|
Weight(kg) |
About 312g (without battery) |

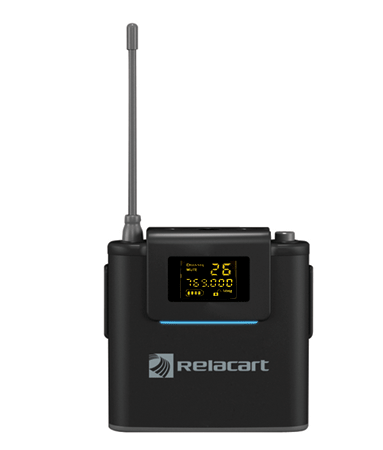

T-32 Body-pack transmitter
|
|
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Oscillation |
PLL |
|
Harmonic radiation |
Below -50dBm |
|
Frequency range |
Band HF -139MHz
Band AD -134MHz
Band EJ -97MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Input Connectort |
4-pin mini-XLR connector |
|
RF output power |
10mW/50mW(optional) |
|
Battery |
AAx1 |
|
Current Consumption |
220mA(typical) |
|
Battery life |
About 5 hours |
|
Size (mm) |
66(H)x63(W)x20(D) |
|
Weight(kg) |
About 85g (without battery) |
