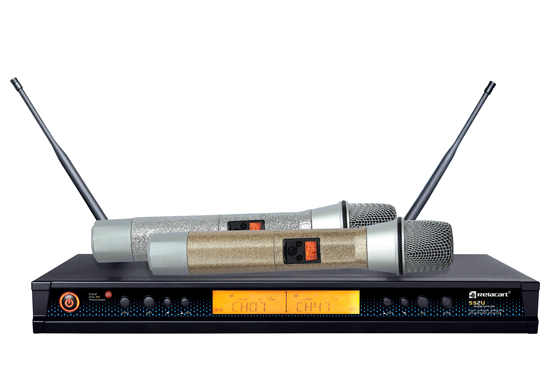

SS-2U UHF Dual-channel Wireless Microphone
¡ñ Contact the iPhone or Android mobile phone by USB terminal to has more detailed setting.
¡ñ Metal materials EIA-standard 1-rack receiver chassis with LCD display.
¡ñ Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status
¡ñ Super wide frequency range 554MHz~936 MHz. Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.
¡ñ Press [IR] button to upload automatically the receiver frequency to the transmitter
¡ñ PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
¡ñ Each channel 64 selectable frequencies, dual-channel 128 selectable frequencies, total 24 frequency band 1024 frequencies for selection.
¡ñ 128 MHz transmitter, the four transmitters with different frequencies band (256 transmitters) can be changed freely, convenient for adjustment and management
¡ñ The transmitters offer durable, magnesium bodies, soft-touch controls
¡ñ Accurate low consume current design with 2 AA alkaline battery, Battery life is twice as common.
SS-2U can match SS-2H handheld microphone and SS-2T body-pack transmitter.
Specifications:

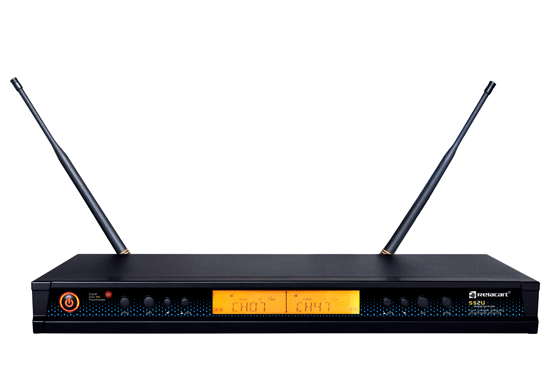

SS-2U receiver
|
|
|
Main Frame Size |
EIA STANDARD 1U |
|
Channels |
Dual Channel |
|
Frequency Stability |
¡À0.005£¥ |
|
Carrier Frequency Range |
554MHz~936 MHz |
|
Sampling Rate |
96kHz 24-Bit |
|
Modulation Mode |
FM |
|
Operating Range |
80M typical ( in open space) |
|
Oscillation |
PLL synthesized |
|
Sensitivity |
5dB¦ÌV, S/N>60dB at 25 deviation |
|
Band Width |
32MHz |
|
Max Deviation Range |
¡À45KHz |
|
S/N |
>100dB |
|
T.H.D |
<0.5£¥@1KHz |
|
Frequency response |
45Hz-18KHz ¡À1dB |
|
Power Supply |
DC12V/1A |
|
Weight |
About 2kg |
|
Dimension |
410mm(W)x43mm(H)x206mm(D) |
|
Output Connector |
XLR balanced & 6.3¦Õ phone jack unbalanced |

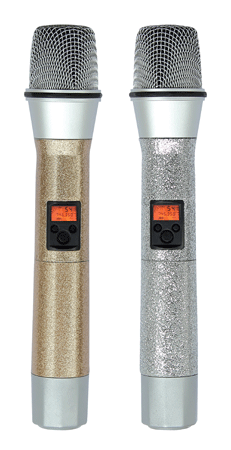

SS-2H Handheld Microphone
|
|
|
Carrier Frequency Range |
UHF 554-936 MHz |
|
Oscillation |
PLL synthesized |
|
Harmonic radiation |
£¼-50dBm |
|
Bandwidth |
128MHz |
|
Max.Deviation Range |
¡À45KHz |
|
Microphone Element |
Cardioid Dynamic / Cardioid Condenser |
|
RF Power Output |
30mW/50mW |
|
Battery |
AA X 2 |
|
Current Consumption |
120mA ( typical) |
|
Battery Current / Life |
Approximately 8 hours |
|
Dimension |
52(¦µ) X 255 (L) |
|
Weight |
235g ( w/o battery) |
|
