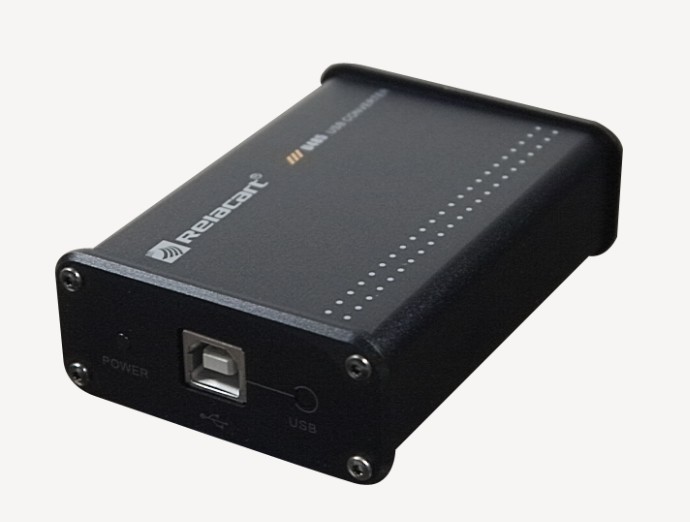

RWW1.0 PC Control Software U485 USB Connector

RWW1.0 is an advanced and powerful digital software. The PC controlling using a Relacart U485 connector, to link to HR systems for real time monitored. The controlling software can scans for signal frequencies that could interfere with microphone transmissions and automatically determine the correct frequency for setup, minimizing error and increasing mic-to-mic sound continuity.
Remotely control up to 64 wireless receivers simultaneously from up to 300 meters away.
The software can monitor transmitter battery status, AF/RF & Antenna A/B strength.
It has a built-in high performance spectrum analyzer allows direct setup of non-interference frequencies and monitors the wireless environment for all operating channels and interference signals, multi-function and status display are also included for your convenience.
Scans to identity and memorize ˇ°dead spotsˇ± in the performing area, multi-function and status display are also included for your convenience.

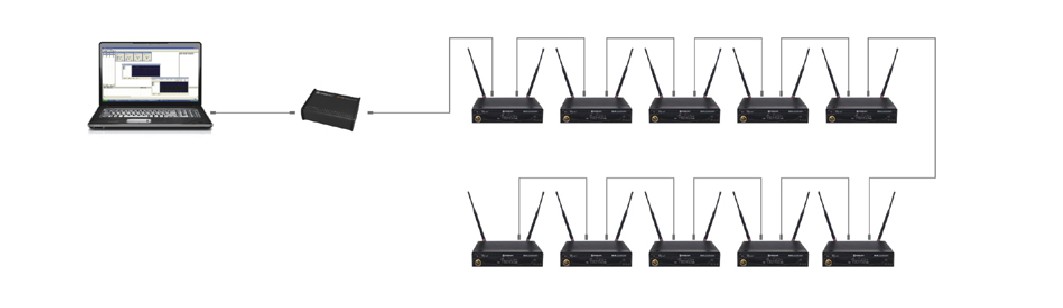

PC control connection diagram

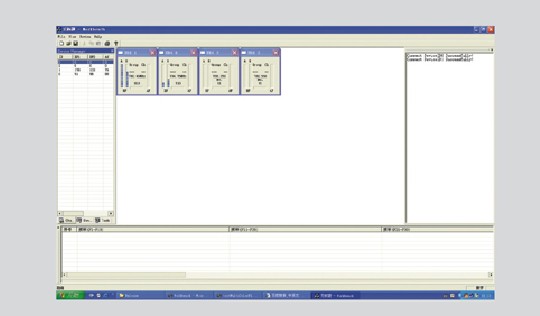

RWW 1.0 RELACART PC Control Interface
Windows XP Control Interface

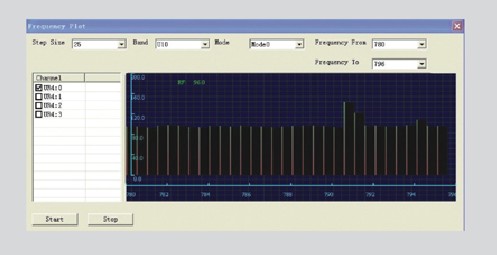

Scanning: Frequency plot
The controlling software that comes with RELACRT HR series microphones can configure and log the transmission quality.

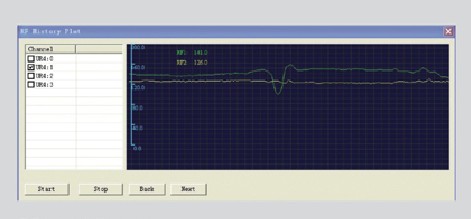

RF signal diagram
This feature can be used to optimize antenna positioning, through the display like signal dropouts where history of signal path is recorded for analysis and real-time program editing. With a interface map can track multiple systems, monitoring a wider range.
|
