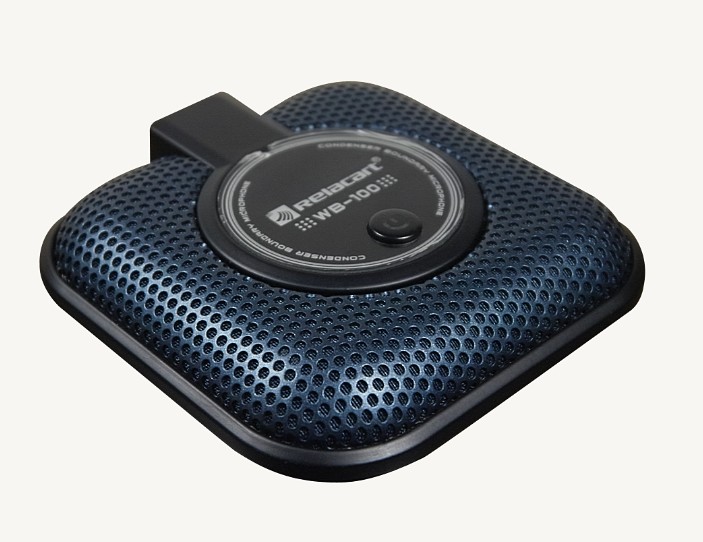

                        WB-100 Cardioid Condenser Boundary Microphone

Key Features:

  • ¡ñ Semi-cardioid polar pattern condenser boundary microphone.
  • ¡ñ Ultra-quiet electronic switch can be set to any of four operating modes: "touch - mute¡±, ¡°touch - on¡±, "touch-to-talk" and "touch-to-mute".
  • ¡ñ External LED control allows for accurate depiction of the live status
  • ¡ñ The microphone switch can control or be controlled by external automatic central control system or other devices.
  • ¡ñ Superior off-axis rejection for maximum gain before feedback.
  • ¡ñ Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone.
  • ¡ñ The WB-100 can be powered from any 11V to 52V DC phantom power source.
  • ¡ñ Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations.



Specifications:

Element
Fixed-charge back plate permanently polarized condenser
Polar patter
Half-cardioid (120¡ã above mounting surface)
Frequency Response
50-17,000 Hz
Low Frequency Roll-Off
80 Hz, 18 dB/octave
Sensitivity
-36 dB (15 mV) re 1V at 1 Pa
Output Impedance
200 ohms
Phantom Power Requirements
11~52V DC, 4 mA typical
