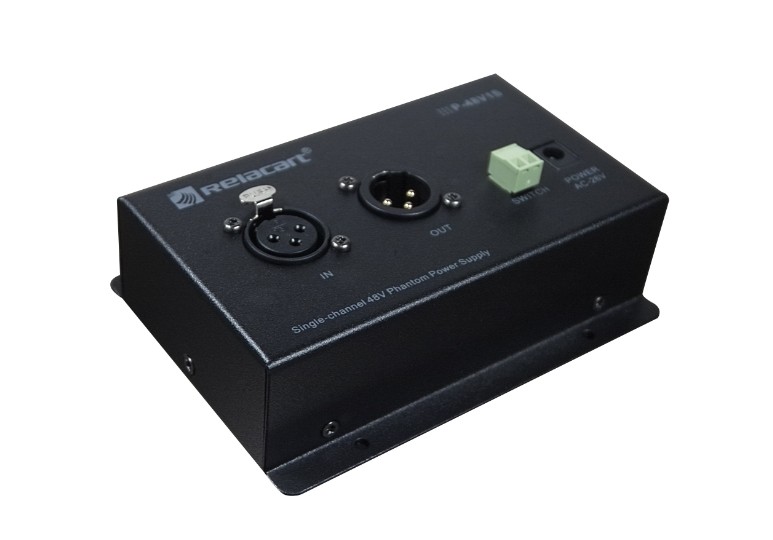

P-48V1S Single-channel 48V Phantom Power Supply
Product Features:
¡ñ Type of external single-pole switch the user supplies determines muting function.
¡ñ Can be installed anywhere in-line, either at the mixer input or near the microphone.
¡ñ 24-48V DC phantom power.
Specifications:
Input Voltage
24V AC
Input Impedance
10,000 ohms
Output Impedance
250 ohms
Max. Input Level
+15dBV(1% T.HD. at 1kHz)
Max. Attenuation
33dB at 1kHz
Weight
372g
