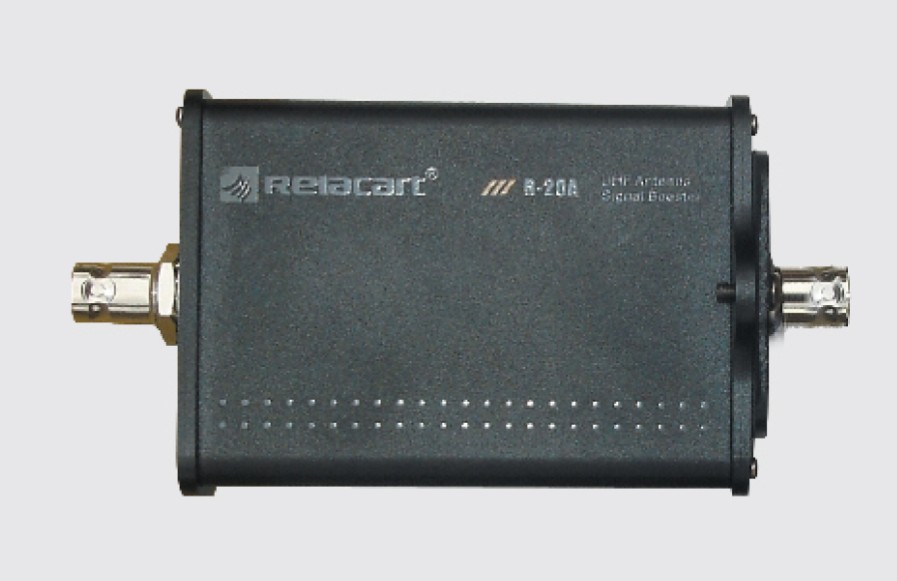

                      R-20A UHF Wide-band Antenna Booster




Key Features:

¡ñ UHF 500-800MHz operating frequency range.
¡ñ Pair of R-20A provides increased gain for receiving antennas, maintains a effective and reliable signals and reduces chance for signal dropouts under difficult RF conditions.
¡ñ Compact and lightweight for easy installation in small spaces.
¡ñ The power of the booster is derived from the coaxial cable connected to RELACART R-14D antenna divider or HR-Series receivers.

Specifications:

Frequency Range
500-800MHz
Gain
15dB
Noise
3dB typical
VSWR
Input : ¡Ü 3:1 ; Output : ¡Ü 3:1
Connector
BNC Female
Power Supply
80 mA @ 8V DC
Sensitivity
-20¡ãC to +60¡ãC
Dimensions (mm)
88(W) X 60(W) X 42(D)
Weight
400g
