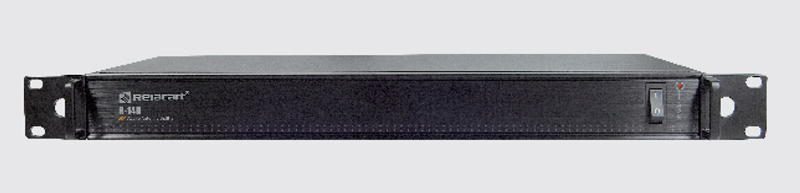

                           R-14D UHF Wideband 4-channel Antenna Divider




Key Features:

¡ñ UHF 600-800MHz operating frequency range, this wideband is compatible with EU and US new telecom regulations.
¡ñ R-14D provides 1-input, 4-output RF channels, connects a pair of antennas to as many as four Relacart-series receiver or other receivers
¡ñ The input connectors provide DC bias for the antenna booster R-20A or active directional antennas R-20U.
¡ñ Allows daisy-chain antenna dividers for more receivers.
¡ñ Metal receiver chassis with reinforced mounting ears and rear rack mount capability.


Specifications:


Frequency Range
600 ¨C 800 MHz
Gain of Output
0 dB¡À3dB
Input Impedance
50¦¸
Output Impedance
50¦¸
Power Supply of Antenna Input
+8V DC
Power Supply of Receiver
Each antenna input port supplies bias +12V DC, 150mA max.
Current Drain
800mA
Power Supply
100¡ª240V, AC 50/60 Hz
Dimension (mm)
421(W) X 43(H) X 206 (D)
Weight
2.3KG
