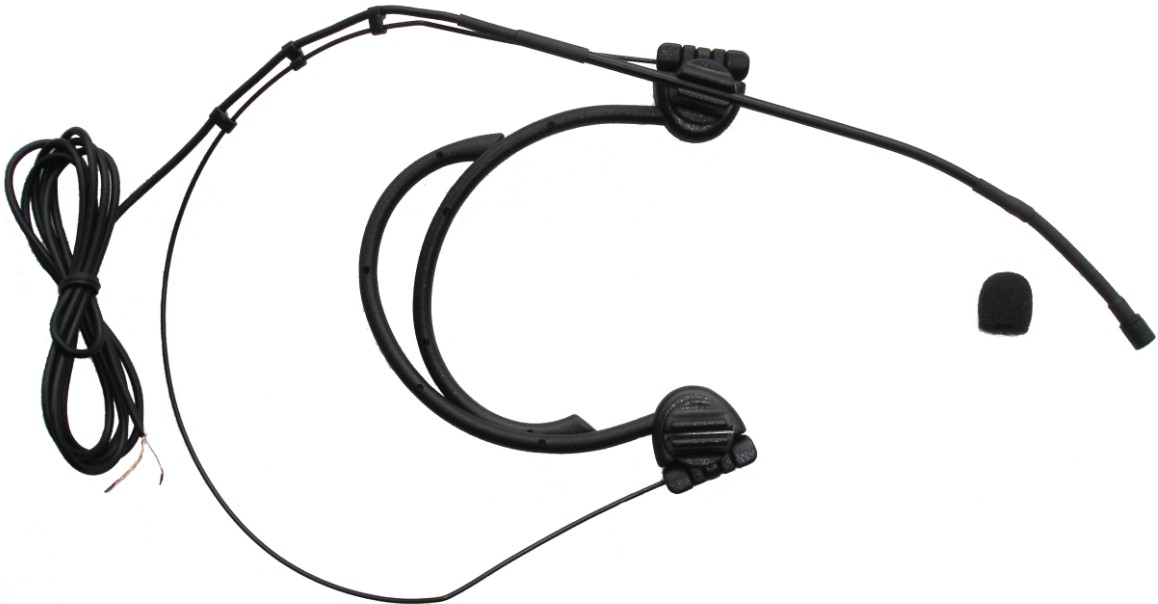

               HM-500B / HM-500S Unidirectional Headworn Microphones







Specifications

Color
HM-500B: Black      HM-500S: Beige
Polar Pattern
Unidirectional
Sensitivity
-47dB ±2dB
Output Impedance
≤2.2KΩ
S/N Ration
≥58dB
Dimensions of capsule
φ6.0X5.0mm
Frequency Response
45Hz~18KHz
Phantom Power Requirements
2~10V.DC
Cable
1m long (permanently attached to microphone)

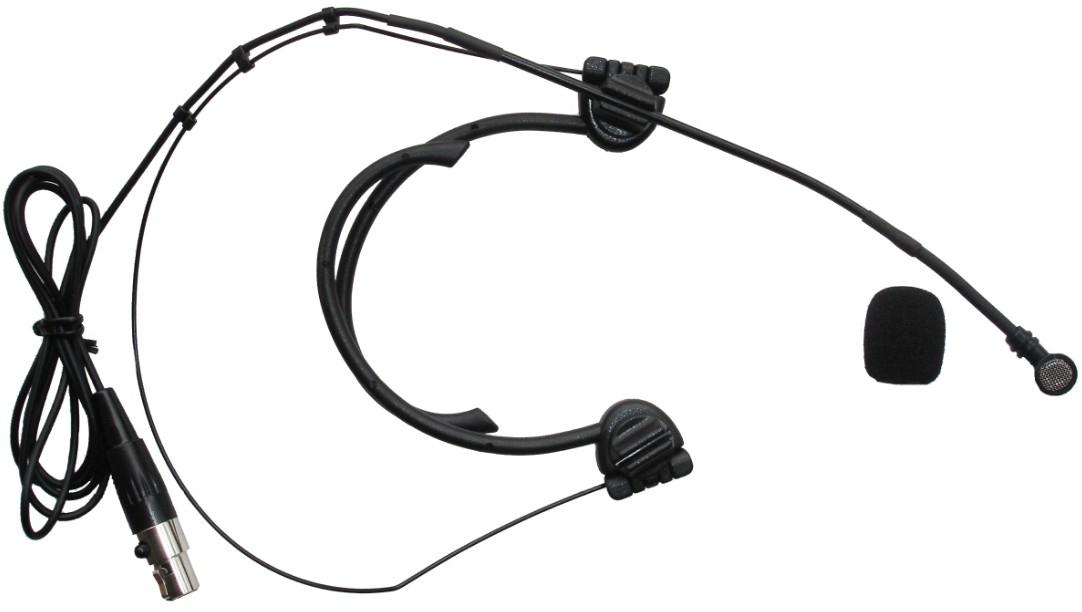

       HM-600B / HM-600S Omnidirectional Headworn Microphones







Specifications


Color
HM-600B: Black     HM-600S: Beige
Polar Pattern
Omnidirectional
Sensitivity
-40.5dB ±2dB
Output Impedance
≤2.2KΩ
S/N Ration
≥59dB
Dimensions of capsule
Φ4.0X1.5mm
Frequency Response
20Hz~18KHz
Phantom Power Requirements
2~10V.DC
Cable
1m long (permanently attached to microphone)
