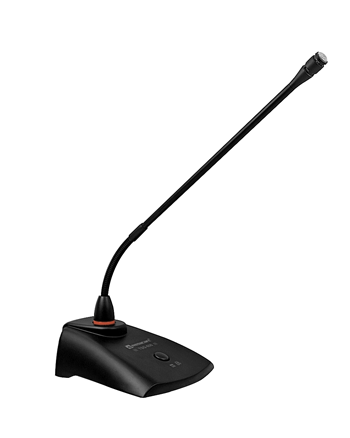

TSG- Series Conferencing Microphone
Product Features:
The TSG series offers excellent sonic character, simple operation and streamlined appearance. Ideal for courtrooms, boardrooms, government chambers, schools and churches.
Integral mute switch on base with three modes (push-to-mute, toggle, push-to-talk) and LED indicator light.
Small-diameter rigid-pipe design with pivoting ball-in-socket.
Sturdy metal desk stand base houses with 3-pin XLRM-type output connector.
Specifications:
TSG-600
|
Element |
Fixed-charge back plate, permanently polarized condensers |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
30Hz~18KHz |
|
Sensitivity |
-35 dB (17.7mV) 1Pa at 1V |
|
Impedance |
250¦¸ |
|
Maximum Input Sound Level |
133 dB SPL, 1KHz at 1% T.H.D |
|
Dynamic Range(Typical) |
109 dB, 1 kHz at Max SPL |
|
S/N Ratio |
70dB,1kHz at 1Pa |
|
Switch |
(on circuit board) Mute/Toggle/Talk |
|
Power Supply |
11-52V DC, 4 mA typical |
|
Weight |
1090g |
|
Microphone Length |
340mm,420mm(standard),480mm |
|
Output connector |
Integral 3-pin XLRM-type |
|
Accessories Furnished |
Windscreen |
|
Color |
Black |
TSG-100 / TSG-200
|
Element |
Fixed-charge back plate, permanently polarized condensers |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
30Hz~18KHz |
|
Sensitivity |
-35 dB (17.7mV) 1Pa at 1V |
|
Impedance |
250¦¸ |
|
Maximum Input Sound Level |
133 dB SPL, 1KHz at 1% T.H.D |
|
Dynamic Range(Typical) |
109 dB, 1 kHz at Max SPL |
|
S/N Ratio |
70dB,1kHz at 1Pa |
|
Switch |
(on circuit board) Mute/Toggle/Talk |
|
Power Supply |
TSG-100: AAx2 /
TSG-200: AAx2 / 11-52V DC, 4 mA typical |
|
Weight |
860g |
|
Microphone Length |
340mm,420mm(standard),480mm |
|
Output connector |
Integral 3-pin XLRM-type |
|
Accessories Furnished |
Windscreen |
|
Color |
Black / Silver |
TSG-300
|
Element |
Fixed-charge back plate, permanently polarized condensers |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
30Hz~18KHz |
|
Sensitivity |
-35 dB (17.7mV) 1Pa at 1V |
|
Impedance |
250¦¸ |
|
Maximum Input Sound Level |
133 dB SPL, 1KHz at 1% T.H.D |
|
Dynamic Range(Typical) |
109 dB, 1 kHz at Max SPL |
|
S/N Ratio |
70dB,1kHz at 1Pa |
|
Switch |
(on circuit board) Mute/Toggle/Talk |
|
Power Supply |
AAx2 / 11-52V DC, 4 mA typical |
|
Weight |
1090g |
|
Microphone Length |
340mm,420mm(standard),480mm |
|
Output connector |
Integral 3-pin XLRM-type |
|
Accessories Furnished |
Windscreen |
|
Color |
Black |
|
