                                       CS-200 Conferencing Discussion System

CS-200 System Overview


CS-200 conference system with easy installation and mounted, is an ideal choice for a variety of audio discussion conference applications, such as boardrooms, conference halls, houses of worship, universities and all type of public institutions. It has strong ability to provide multi-functional features, high security, ease of operation and good sound quality.

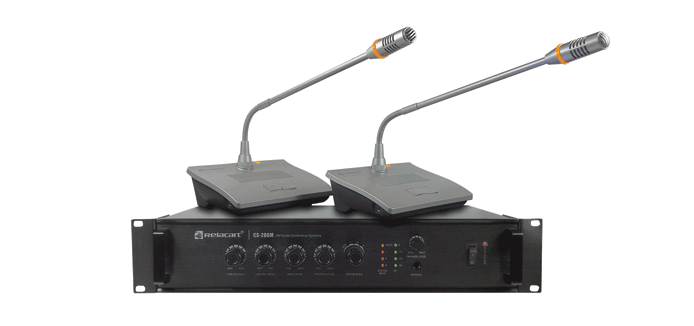

CS-100 discussion system overview:

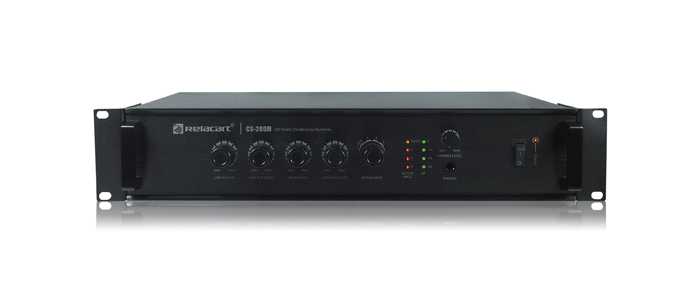

CS-200M Central Controller
CS-200C chairman unit
CS-200D delegate unit



System Features:


CS-200M Central Controller

• Advanced Conference Technology, conform to IEC60914 International Standard.
• Active 1/3/6 microphones in a time, chairman unit has the priority to override all delegate units.
• Auto microphone-off if no input sound in 40S.
• Control for up to 60 speaking units.
• Easy installation, simple operation.
• High quality voice resolutions, especially dmesigned for mini/medium type conferencing rooms.
• Stable and reliable connecting cable.
• Audio insertion facility to connect external audio processing devices or telephone couplers.
• Delicate and elegant design.
• Tabletop or mounted in a 19’’ rack.
• Two operational microphone modes: Discussion and AUTO.

Technical Specifications

Electricity
Electric Voltage for Power
AC 110-240V 50/60 Hz
Current consumption
65W
Audio Input
RCA X 1
Audio Output
RCA X 1
Microphone Input
6.3mm connector
In-ear monitor microphone output
6.3mm earphone X1
Frequency response
85Hz~15KHz
S/N
80dB
Installation
Tabletop or mounted in a 19’’ rack
Color
Black
Dimension（W X H X D）
426(W)x88(H)x342(D)
Weight (KG)
8.3






CS-200C Chairman Unit

• Delicate and fashion design, easy to use.
• Advanced conferencing technology, compliant with ICE60914.
• Priority bottom to switch off the speaking unit.
• Built-in Hi-Fi loudspeaker to prevent acoustic feedback, the loudspeaker is muted when the microphone is on.
• With illuminated ring.
• Unidirectional condenser microphone for high quality sound pickup.
• Separate headphone with volume adjustment.
• Black or white for selection


CS-200D Delegate Unit

• Delicate and fashion design, easy to use.
• Advanced conferencing technology, compliant with ICE60914.
• Built-in Hi-Fi loudspeaker to prevent acoustic feedback, the loudspeaker is muted when the microphone is on.
• With illuminated ring.
• Unidirectional condenser microphone for high quality sound pickup.
• Separate headphone with volume adjustment.
• Black or white for selection.



Technical specifications:


Electricity
Frequency response
85Hz-15KHz
Current Consumption
Max：85mA
Output Power
2 X 300mW
Element
Fixed-charge plate, permanently polarized condensers
Earphone Output
3.5mm earphone jack
Earphone Carrier Impedance
32Ohm
Built-in Loudspeaker
1W
Machine
Installation
Tabletop
Dimension for base     (WxHxD)
w/o microphone  320(W)x57.5(H)x130(D)
Color
Black/silver
Microphone Length(selectable)
340mm/420mm(consented)x480mm
Weight(KG)
0.86
