UR-220D UHF Dual-channel Wireless Microphone

  Key Features:

  • ● Metal materials EIA-standard 1-rack receiver chassis with two transmitters, antenna diversity.
  • ● The transmitters offer durable, magnesium bodies, soft-touch controls.
  • ● Bright and easy-to-read LCD display shows RF/AF, diversity strengths; transmitter battery level; meanwhile, can set up selective channel, frequency, mute and other working status.
  • ● Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.
  • ● Press [IR] button to upload automatically the receiver frequency to the transmitter.
  • ● PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.
  • ● Each channel 32 selectable frequencies, dual-channel 64 selectable frequencies.
  • ● Battery life is twice as common, up to 15 hours.
  • ● Designed for use on professional tours, concert halls and houses of worship. Stable functions, reliable and flexible performance, easy to install.



Specifications:

UR-220D Receiver



Main Frame Size
EIA STANDARD 1U
Channels
Dual Channel
Frequency Stability
±0.0005%, Phase Lock Loop frequency control
Carrier Frequency Range
UHF 618-936 MHz
Digital Equalizer
Preset Microphone Capsule Modeling
Modulation Mode
FM
Operating Range
60M typical ( in open space)
Oscillation
PLL synthesized
Sensitivity
5dBμV, S/N>60dB at 25 deviation
Band Width
32MHz
Max.Deviation Range
±45KHz
S/N
＞105dB
T.H.D.
＜0.7 % @ 1KHz
Frequency response
45Hz～18KHz±1dB
Power Supply
100-240V AC50/60 Hz, 10W
Weight
4.0KG
Dimension
421(W) X 43(H) X 206(D)
Output Connector
XLR balanced & 6.3φ phone jack unbalanced

UH-200 Handheld Microphone

Carrier Frequency Range
UHF 618-936 MHz
Oscillation
PLL synthesized
Harmonic radiation
＜-63dBm
Bandwidth
32MHz
Max.Deviation Range
±45KHz
Microphone Element
Cardioid Dynamic / Cardioid Condenser
RF Power Output
15mW
Battery
AA X 2
Current Consumption
90mA ( typical)
Battery Current / Life
Approximately 15 hours
Dimension
52(Φ) X 252 (L)
Weight
208g ( w/o battery)

UT-200 Body-pack Transmitter


Carrier Frequency Range
UHF 618-936 MHz
Oscillation
PLL synthesized
Harmonic radiation
＜-63dBm
Bandwidth
32MHz
Max.Deviation Range
±45KHz
Input Connector
4-pin mini-XLR connector
RF Power Output
15mW
Battery
AA X 2
Current Consumption
90mA (typical)
Battery Current / Life
Approximately 15 hours
Dimension
95(H) X 65(W) X 25(D)
Weight
165g

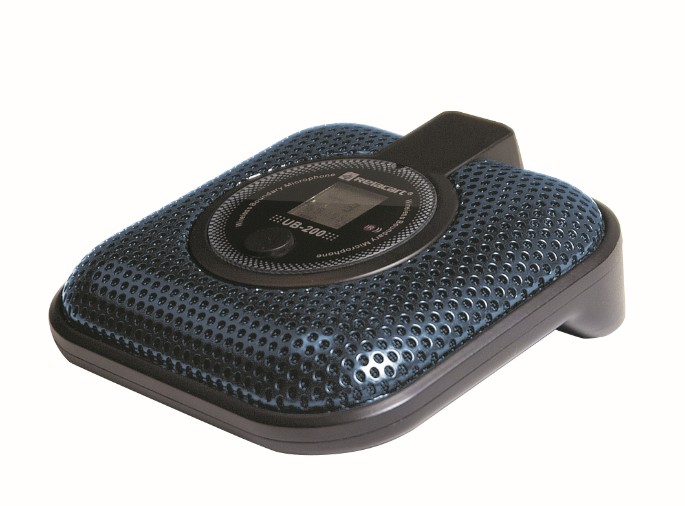

UB-200 Boundary Microphone

Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Half-cardioid (cardioid in hemisphere above mounting surface)
Carrier Frequency Range
490MHz~860 MHz
Modulation Mode
FM
Frequency Response
50-17,000 Hz
Max.Deviation Range
±45 KHz
Operating Range
60M typical ( in open space)
Current Consumption
90mA, typical
RF Power Output
30mW
Dynamic Range (Typical)
> 90 dB，1 kHz at Max SPL
Battery
AA X 2
Battery Current / Life
Approximately 10 hours
